Facebook reveals holographic optics for thin and light VR headsets

Today’s virtual reality headsets are universally big — closer to goggles than glasses, and even then, larger and heavier than modern ski goggles. While Facebook has shown prototypes of bigger and more complex Oculus VR headsets, it’s made no secret of its interest in creating lightweight models that can be worn all day. Now it’s revealing a holographic optical architecture designed for thinner, lighter VR headsets, which it expects will appear in future “high performance AR/VR” devices.

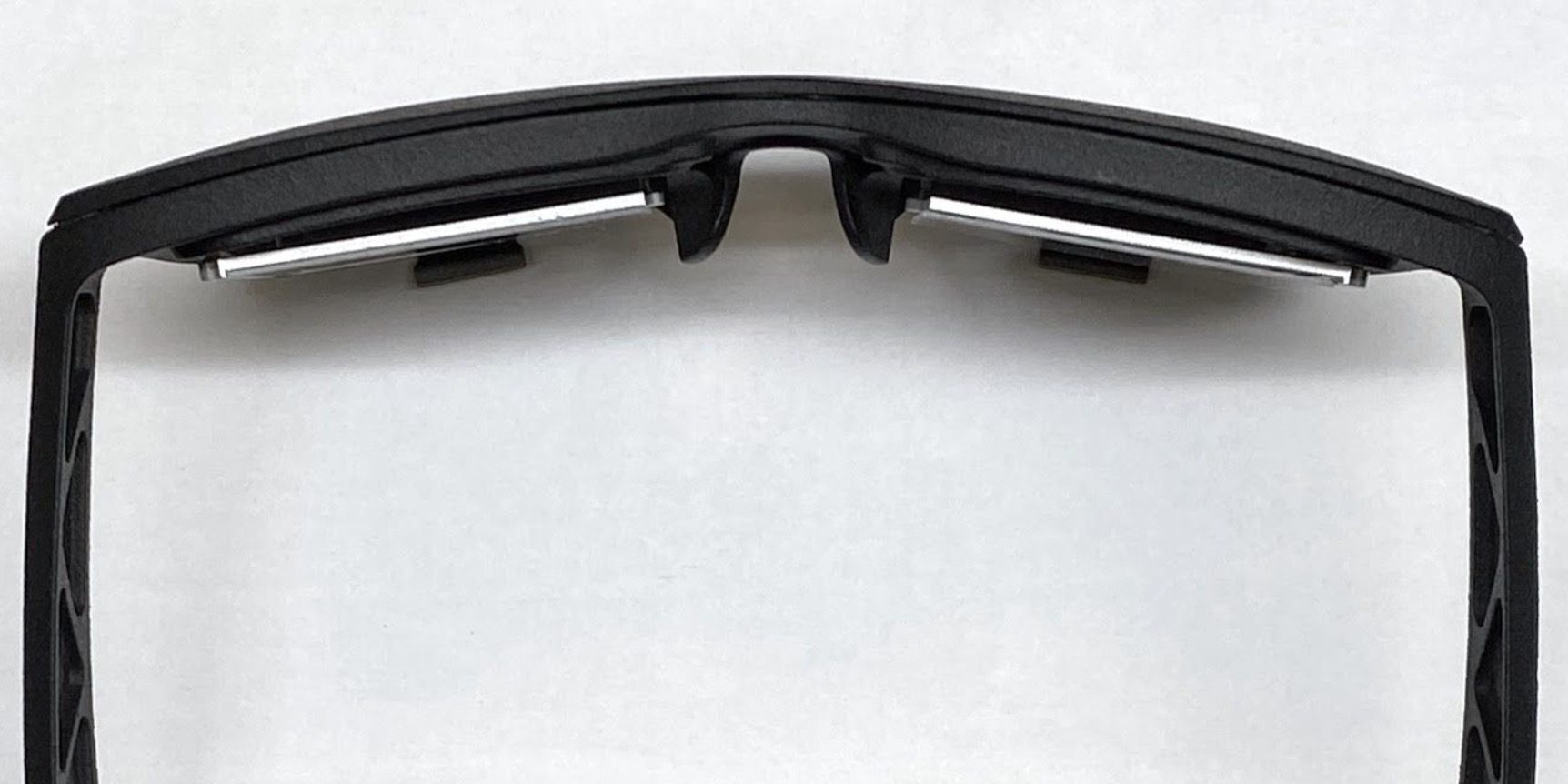

Discussed in a Siggraph 2020 research paper titled “Holographic Optics for Thin and Lightweight Virtual Reality,” the system uses flat films to create a VR display only slightly thicker than today’s typical smartphones. Facebook’s “pancake optics” design combines several thin layers of holographic film with a laser projection system and directional backlights, delivering either flat imagery or volumetric holograms depending on the sophistication of the design. Depending on how many color, lighting, and alignment-enhancing components a prototype contains, the thickness of the optical system can range from 11mm to just under 9mm.
